Fully Automatic Pedestrian Gates


  • fully automatic pedestrian gate

Our Fully Automatic Pedestrian Gates provide maximum security and a reliable access control solution, perfect for a wide range of industrial and commercial premises. Our electric pedestrian gates restrict access to unauthorised areas and help to control the flow of users in and out of your facility.

Our range of fully automatic pedestrian gates are designed and built in Britain, backed by over 38 years’ of manufacturing experience to ensure we provide some of the best electric pedestrian gates on the market today. Our pedestrian gates are built from heavy duty hollow steel sections, opening at a 90 degree angle and are fitted with our advanced gate automation technology.

All our automatic pedestrian gates can be custom made to meet your exact specifications and come with a range of finishes, access control options and accessories, giving you a fully bespoke security solution.

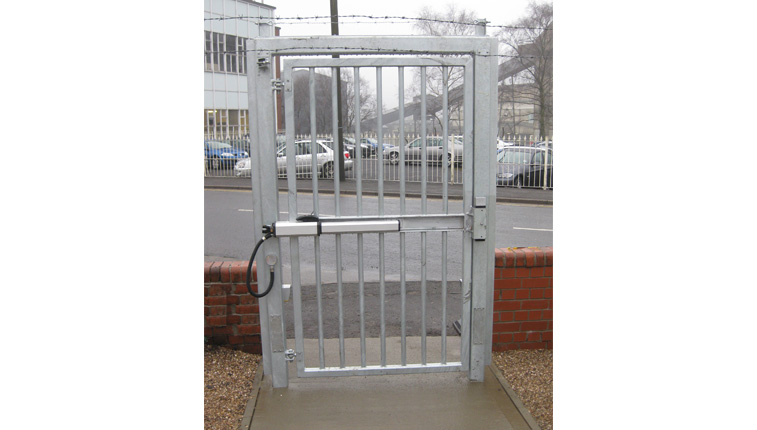

Fully Automatic Pedestrian Gate


Our electric pedestrian gates are opened and closed using an electro-hydraulic drive ram. The ram has in built and adjustable pressure settings and a manual override facility in the event of a power failure.

The typical spans of our automatic pedestrian gates range from widths of 1.2 metres up to 2.0 metres and a height range from 2.0 metres to 3.0 metres.

Our electric pedestrian gates are hinged using adjustable rod eye bearings complete with lubrication points and can be fitted with a variety of access control systems including card, token, intercom, push button or keypad.

With a magnetic locking mechanism as standard, our automatic pedestrian gates have a number of advanced safety features such as safety edges, photo cells, HSE signage and manual override control.

Buy and Configure Online

This product is now available to buy onilne. Click below to configure your Fully-Automatic Pedestrian Gate.

Configure Gate

Technical Specifications


Fully Automatic Pedestrian Gate
Construction (Typical)

Hollow Steel Section. Frame 50mm SHS, Stanchions 100mm SHS

Infill

Tube / Mesh / Palisade / Paladin

Typical Dimensions

1200mm Span x 2400mm High

Drive Unit

Electro Hydraulic Ram

Operating Supply

230V 1Ph + Neutral + Earth 50Hz – 6 Amps

Duty Rating

45%

Gate Finish

Painted (as standard)

Control Options

Keypad, Card Reader, Push Button

Safety Features

Safety Edges, Photo Cells, HSE Signage, Manual Override Control

Standard Fittings

Electric Maglock, Hydraulic Self Closer, Fixing Bolts

Standard Opening

90 Degrees

Key Features


Our fully automatic pedestrian gates come with a variety of key features such as:

  • Custom designed and built to suit individual applications
  • Full mild steel construction
  • Electro-hydraulic drive ram
  • Full set CAT 3 safety edges
  • Photo-cell safety system
  • Force tested to latest Industry Standards
  • Manual override control
  • Adjustable rod eye bearing hinges

All of our electric pedestrian gates adhere to the latest British and European standards including BS EN 12453:2001 and BS EN 12445:2001 and arefully DDA compliant.

Our pedestrian gates are force tested to the latest industry standards, UKCA Approved and meet essential health and safety requirements according to the Machinery Directive 2006/46/EC.

CTA Background

Contact Us for a Free Consultation

If you are considering automatic pedestrian gates for your premises, contact Newgate today for a free consultation to see how we can help

Contact the Team

Manufacturing


Newgate have been manufacturing high quality automatic pedestrian gates since 1984. We have an enviable list of clients who demand the best product with complete reliability and at a competitive price.

Our ethos of design and manufacturing excellence is an essential part of the company’s commitment to delivering the highest standards of product innovation, quality and installation to our clients at all times.

Our Drawing and Design offices use the latest in 2D, 3D & FEA computer aided design software to ensure each product ordered by the client is drawn and manufactured to exact requirements

When drawings have been approved, Newgate fabricators manufacture the product ready for paint shop submission, and to any BS/RAL colour requested by the client. Mechanical and electrical-assembly is carried out by our qualified (to current industry standards) and time served engineers at our purpose built premises, based in Nottinghamshire.

Installation and Civil Works


Newgate have their own dedicated installation and civil engineers, stratigically located throughout the country, that enable us to offer a complete (or part) installation and civil work service as required.

Our civil work capabilities include:

  • Initial Site Survey and Technical Drawings as required
  • Foundation Blocks and Road Crossings and Kerb Lines
  • Cable Ducting and Trenching
  • Induction Loop Slotting and Backfilling
  • Manholes and Soakaways
  • Tarmacing and Blockpaving

Providing a professional service at all times, Newgates experienced engineers insure the highest level of customer service.

Our Installation Capabilities include:

  • Carriage to Site
  • Offloading / Craneage Facilities
  • Bolting Down / Setting Up
  • Cable Supply and Installation (Mains and Control Cables)
  • Testing, Comimissioning and on site Training

Maintenance and Aftercare


Newgate provide a range of standard or bespoke maintenance packages designed to suit your needs making sure your automatic pedestrian gates meet the latest legislation and are fully operationally efficient.

The correct maintenance for your equipment ensures its performance and helps extend it operational life.

All autmatic pedestrian gates require regular servicing and we strongly recommend that you do not undertake your own maintenance work, poor servicing could result in damage to your product or injury, please let the professional work with you to preserve the life of you new product.

For more information on our product repair, servicing and maintenance packages services, please click here.
