Manual Swing Gates

Enquire NowRAL Colour Chart

Our Manual Swing Gates are synonymous with quality and reliability. With over 40 years’ experience in design and build, the Newgate brand is known to produce the best and most robust gates in the industry.

Our range of manual swing gates are constructed from steel using substantial RHS sections, industrial bearing hinges, special paint treatment and locking facilities as standard.

If you are looking for a custom solution, our design team can work with you to produce a fully bespoke product, tailored to your exact requirements and incorporated with your company colours to give you a great looking and highly secure solution.

Products in this range:

Manual Swing Gate (up to 4.5m)

View Product Specifications

Get a Quotation

Our manual swing security gates up to 4.5m provides the perfect solution when automation is not required. Each gate is designed in a way that allows for simple and effortless opening by the user.

This manual swing gate spans from 2.25 metres (single leaf) up to 4.5 metres (double leaf) and opens to a minimum of 90 degrees as standard to provide maximum vehicular access, making the swing gate ideal protection for sites such as warehouses, factories, and schools.

Manufactured from hollow steel sections and offering a variety of infill options, paint or coated finishes and accessories, our manual swing gate is perfect for various perimeter security applications providing controlled access as required.

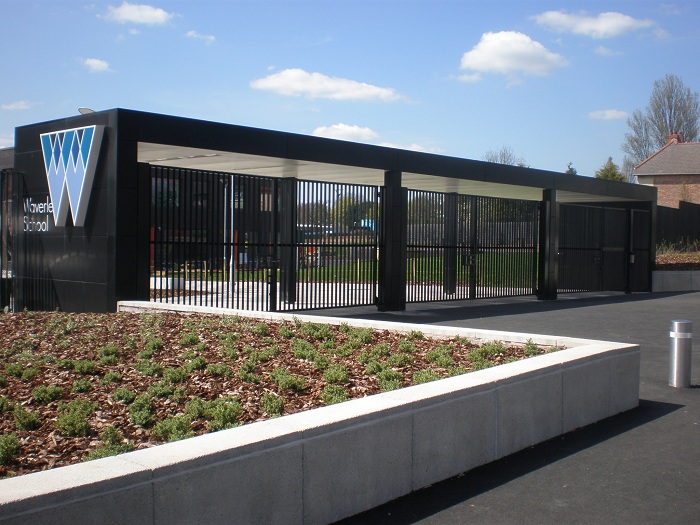

Manual Swing Gate (up to 14m)

    • manual swing gate in black

View Product Specifications

Get a Quotation

Our manual swing gate up to 14m is a larger and more heavy duty security gates which offers a suitable solution when gate automation isn’t needed. Our manual swing gates are design and built to provide smooth operation and optimum performance time after time.

This manual swing gate spans openings from 7.0 metres (single leaf) up to 14 meters (double leaf) which open to a 90 degree angle. Our manual swing gates provide ultimate protection for high-risk security sites, such as emergency access points and military establishments.

Our manual swing gates are constructed using a steel rectangular hollow section with an 80mm frame and 150mm stanchions. All our gates are available in a range of finishes and infill options, as well as optional accessories including barbed wire and razor wire.

Technical Specifications

Up to 4.5mUp to 14m
Construction (Typical)

Rectangular Hollow Section. Frame 80mm SHS, Stanchions: 150mm SHS

Rectangular Hollow Section. Frame 80mm SHS, Stanchions 150mm to

250mm SHS

Infill (Typical)

Tube / Mesh / Palisade

Tube / Mesh / Palisade

Typical Dimensions

See CAD Drawing

See CAD Drawing

Gate Finish

Painted (as standard). Zinc Coated or Galvanised (optional)

Painted (as standard). Zinc Coated or Galvanised (optional)

Accessories

HSE Signage (as standard). Barbed Wire, Razor Wire and Rotor Spikes (Optional)

HSE Signage (as standard). Barbed Wire, Razor Wire (Optional)

Standard Opening

90 Degrees (Specials available upon request)

90 Degrees (Specials available upon request)

Key Features

Our range of manual swing gates come with a number of features as standard, which include:

  • Custom designed & built to suit individual applications
  • Full mild steel construction
  • Adjustable bearing hinges
  • Choice of infills (tube, mesh, palisade etc)
  • Locking facilities as standard

All our manual swing gates are uniquely designed to ensure maximum operational performance and are all BS6571, UKCA Approved and include a 12 month warranty as standard.

CTA Background

Contact Us for a Free Consultation

If you are considering manual swing gates for your premises, contact Newgate today for a free consultation to see how we can help

Contact the Team

Manufacturing

Newgate have been manufacturing high quality manual swing gates since 1984. We have an enviable list of clients who demand the best product with complete reliability and at a competitive price.

Our ethos of design and manufacturing excellence is an essential part of the company’s commitment to delivering the highest standards of product innovation, quality, and installation to our clients at all times.

Our Drawing and Design offices use the latest in 2D, 3D & FEA computer aided design software to ensure each product ordered by the client is drawn and manufactured to their exact requirements.

When drawings have been approved, Newgate fabricators manufacture the product ready for paint shop submission and add any BS/RAL colour requested by the client. The mechanical and electrical assembly is carried out by our qualified (to current industry standards) and time served engineers at our purpose built premises, based in Nottinghamshire.

Installation and Civil Works

Newgate have their own dedicated installation and civil engineers, strategically located throughout the country, which enable us to offer a complete (or part) installation and civil work service as required.

Our civil work capabilities include:

  • Initial Site Survey and Technical Drawings as required
  • Foundation Blocks and Road Crossings and Kerb Lines
  • Cable Ducting and Trenching
  • Induction Loop Slotting and Backfilling
  • Manholes and Soakaways
  • Tarmacking and Block Paving

Providing a professional service at all times, Newgate’s experienced engineers insure the highest level of customer service.

Our Installation Capabilities include:

  • Carriage to Site
  • Offloading / Craneage Facilities
  • Bolting Down / Setting Up
  • Cable Supply and Installation (Mains and Control Cables)
  • Testing, Commissioning and on site Training

Maintenance and Aftercare

Newgate provide a range of standard or bespoke maintenance packages designed to suit your needs making sure your manual swing gate meets the latest legislation and are fully operationally efficient.

The correct maintenance for your equipment ensures its performance and helps extend it operational life.

All manual swing gates require regular servicing and we strongly recommend that you do not undertake your own maintenance work, poor servicing could result in damage to your product or injury, please let the professional work with you to preserve the life of you new product.

For more information on our product repair, servicing, and maintenance packages services, please click here.

Maintenance & Aftercare
