Automatic Sliding Gates


Our Automatic Sliding Gates feature a robust design to ensure maximum security and smooth operation at all times. Our range of electric sliding gates can span openings from 8 to 18 metres (single leaf) or 16 to 36 metres (double leaf) in either a cantilever or tracked configuration.

The frame and stanchions of our automatic sliding security gates are manufactured from substantial rectangular hollow sections with a variety of infill options available. Our very own high quality motor and a gearbox drive unit and PLC control the gate, ensuring it responds quickly to operator instructions.

Our in-house design team can produce a fully bespoke solution to meet your specific needs, with our range being available in a wide range of colours, sizes and configurations.

Smooth, reliable and easy to use, our electric sliding gates can be controlled by a variety of access control systems including proximity card, push button, keypad, token and radio control.

Automatic Sliding Security Gates (Up to 8.0m)


This Automatic Sliding Gate (Type 3) has been designed for more cost-conscious applications. This electric sliding gate can span openings of 8 metres (single leaf) or up to 16 metres (double leaf) in a cantilever construction, which means that no ground tracks are needed.

This gate rolls on two pairs of industrial bogies, with each bogey having eight wheels and being fully zinc plated to ensure consistant and smoot operation, whatever the weather.

Standard features of our automatic sliding gate (Type 3) include a manual operation override facility in case of power failure and a safety edge system and photo cell to prevent the gate closing on pedestrians or vehicles. Gate cappings, barbed wire gate tops, fire alarm activation and audible alarms are also available as optional extras.

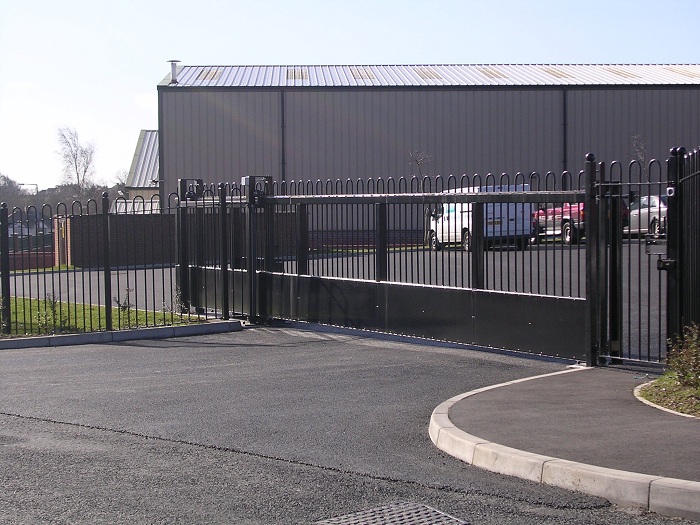

Automatic Sliding Security Gates (Up to 9.5m)


This Automatic Sliding Gate (Type 1) features a heavy duty design and construction for more security-conscious applications. The Type 1 electric sliding gate is available in spans of up to 9.5 metres (single leaf) or 19 metres (double leaf).

This gate runs between 8 rollers, removing the need to install a ground track. Each roller assemble is manufactured with eight fully zinc plated wheels to ensure continuous smooth operation.

Our automatic sliding gates are powered by a high quality single phase motor gearbox drive unit and PLC control providing instant response from the operational controls.

As with all our electric sliding gates, this gate has a number of advanced features including a manual operation override facility in the event of a power failure and a photo cell and safety edge system for additional safety to prevent the gate closing on visitors and their vehicles.

Automatic Sliding Security Gates (Up to 18m)


This Automatic Sliding Security Gate (Type 1) comes in a tracked configuration and its robust and heavy duty design makes this gate suitable for environments where security is of the utmost importance. The Type 1 tracked electric security gate is available in spans of up to 18 metres (single leaf) or 36 metres (double leaf).

From its high quality and industry leading motor and gearbox drive unit, the gate responds rapidly to operator instructions. This system has been specially designed to ensure ease-of-use for a gate so large, and our roller stanchions provide super smooth and simple opening and closing time after time.

Our automatic sliding gates include a number of features such as a manual operation override facility in case of power failure and a photo cell and safety edge system for additional security. Optional extras include gate cappings, barbed wire gate tops, fire alarm activation and audible alarms.

Technical Specifications


Up to 8.0mUp to 9.5mUp to 18m
Construction

Frame – Steel, Rectangular hollow section

Infill – Tube, Mesh, Palisade, Bar

Frame – Steel, Rectangular hollow section

Infill – Tube, Mesh, Palisade, Bar, Wood

Frame – Steel, Rectangular hollow section

Infill – Tube, Mesh, Palisade, Bar, Wood

Spans

Cantilever – 8000mm max

Cantilever – 9500mm max

Tracked -18000mm max

Dimensions

See CAD Drawing

See CAD Drawing

See CAD Drawing

Drive Unit

Motor and Gearbox / Drive Rack

Motor and Gearbox / Chain Rack

Motor and Gearbox / Chain Rack

Operating Supply

230v 1Ph 50hz – 6 amps

230v 1Ph 50hz – 16 amps

230v 1Ph 50hz – 16 amps

Operating Speed

150mm/sec

200mm/sec

200mm/sec

Power

1.0 Kw

1.5 Kw

1.5 Kw

Duty Rating

100%

100%

100%

Manual Operation

Included as Standard

Included as Standard

Included as Standard

Finish

Standard – 2 x Coat paint treatment

Optional – Galvanised / Zinc coated

Standard – 2 x Coat paint treatment

Optional – Galvanised / Zinc coated

Standard – 2 x Coat paint treatment

Optional – Galvanised / Zinc coated

Control Options

Card, Radio, Token, Keypad, Intercom, Push Button, Vehicle Transponder, Induction Loop and Photocell

Card, Radio, Token, Keypad, Intercom, Push Button, Vehicle Transponder, Induction Loop and Photocell

Card, Radio, Token, Keypad, Intercom, Push Button, Vehicle Transponder, Induction Loop and Photocell

Safety Features

Standard – Six(6) Safety Edges, CAT.3 & Photocells

Optional – Induction Loop

Standard – Ten (10) Safety Edges, CAT.3 & Photocells

Optional – Induction Loop

Standard – Ten (10) Safety Edges, CAT.3 & Photocells

Optional – Induction Loop

Accessories

Fire Alarm Activation, Barbed Wire, Rotor Spikes, Audible Alarm, Flashing Beacon, Access Reader Posts

Fire Alarm Activation, Barbed Wire, Rotor Spikes, Audible Alarm, Flashing Beacon, Access Reader Posts

Fire Alarm Activation, Barbed Wire, Rotor Spikes, Audible Alarm, Flashing Beacon, Access Reader Posts

Approved Standards

C.E. BS EN13241 / BS EN12453

C.E. BS EN13241 / BS EN12453

C.E. BS EN13241 / BS EN12453

Key Features


Our automatic sliding gates are fully compliant with the Latest Industry Standards (BS EN 12453) and are CE approved ISO 2001, ensuring that we adhere to essential health and safety regulations.

Our electric sliding gates include a number of key features such as:

  • Custom designed & built to suit individual applications
  • Full mild steel construction
  • Tried & tested roller assemblies
  • 100% duty rated
  • Motor & gearbox drive
  • Inverter logic control
  • Full CAT 3 safety edge system
  • Force tested to latest Industry Standards
  • Choice of infills (tube, mesh, palisade, wood etc)
  • Manual override control, as standard

All our automatic sliding gates are designed to either meet or exceed the current industry legislation of the Machinery Directive 2006/46/EC and meet both British and European standards.

Contact Us for a Free Consultation

If you are considering automatic sliding gates for your premises, contact Newgate today for a free consultation to see how we can help

Contact the Team

Manufacturing


Newgate have been manufacturing high quality automatic sliding gates since 1984. We have an enviable list of customers who demand the best product with complete reliability and at a competitive price.

Our ethos of design and manufacturing excellence is an essential part of the company’s commitment to delivering the highest standards of product innovation, quality and installation to our clients at all times.

Our Drawing and Design offices use the latest in 2D, 3D & FEA computer aided design software to ensure each product ordered by the client is drawn and manufactured to exact requirements

When drawings have been approved, Newgate fabricators manufacture the product ready for paint shop submission, and to any BS/RAL colour requested by the client. Mechanical and electrical-assembly is carried out by our qualified (to current industry standards) and time served engineers at our purpose built premises, based in Nottinghamshire.

Installation and Civil Works


Newgate have their own dedicated installation and civil engineers, stratigically located throughout the country, that enable us to offer a complete (or part) installation and civil work service as required.

Our civil work capabilities include:

  • Initial Site Survey and Technical Drawings as required
  • Foundation Blocks and Road Crossings and Kerb Lines
  • Cable Ducting and Trenching
  • Induction Loop Slotting and Backfilling
  • Manholes and Soakaways
  • Tarmacing and Blockpaving

Providing a professional service at all times, Newgates experienced engineers insure the highest level of customer service.

Our Installation Capabilities include:

  • Carriage to Site
  • Offloading / Craneage Facilities
  • Bolting Down / Setting Up
  • Cable Supply and Installation (Mains and Control Cables)
  • Testing, Comimissioning and on site Training

Maintenance and Aftercare


Newgate provide a range of standard or bespoke maintenance packages designed to suit your needs making sure your automatic sliding gate meets the latest legislation and are fully operationally efficient.

The correct maintenance for your equipment ensures its performance and helps extend it operational life.

All automatic sliding gates require regular servicing and we strongly recommend that you do not undertake your own maintenance work, poor servicing could result in damage to your product or injury, please let the professional work with you to preserve the life of you new product.
